Category Archives: knife sharpening

A Knife From The Hood

birck-ft

birck

At first, I thought the above knife was a German style paring knife, but now I’m not so sure. German knives are almost always somewhat flexiable, and this one is very rigid.   Notice the small recess on the handle, near the blade, perhaps worn by fingers gripping the handle over the decades.  Even a light surface cleaning could destroy not only important use evidence, but the overall beauty of the knife.  As I have said before, the over-cleaning and “restoration” of  hand tools is perhaps the most significant ongoing loss of cultural property  that commonly occurs.   The blade is full tang and has a gradual taper in thickness towards the cutting edge. Judging from the scratch patterns in the top picture, the owner must have had a stressful encounter with his grinding wheel!  But I find these marks interesting evidence of the history of the tool, as well as a visually refreshing antidote to the ubiquitous monotony of the highly regulated machine grind marks found on new tools.  The handle is an unidentified light colored wood that has been stained and is still firmly attached to the tang. The edges of the handle is still quite sharp, and the various ways I have tried to hold it all are somewhat uncomfortable.

Matt Murphy  found some information about Fred J. Birck:  “From 1903-04 he worked at 93 Essex St. In 1905-06, Fred. J. Birck is listed as being a part of Birck & Zamminer Cutlery, which is located at 154 Essex St.  In 1908-1912, Birck is listed at two seperate addresses, 132 Essex St. and 17 Cooper Sq. East. In 1912-1913, the primary address is changed to 17 Cooper Sq. E.  In 1913-1914, the partnership must have been dissolved, because only Birck is listed, and the only address is 17 Cooper Sq. E. until 1925.  Also, Mr. Birck made his home in Jersey City, New Jersey, as his address is often listed as 144 Hutton St. (Which still stands to this day.)”

So the knife is possibly from 1913-25.  Aside from the beautiful, insanely deep makers mark, I was attracted to the fact that another knife-maker worked in the East Village of NYC, only about 5 blocks from where my studio is now. There is even an old bar,  McSorley’s, established in 1854, still operating right around the corner from Birck’s 17 Cooper Sq. address. Perhaps Birck had a drink there.  I’ll raise a glass to him next time I’m there.



Don Rash posted a similar looking knife on his blog, unfortunately no makers mark.  I looked through Salaman’s Dictionary of Leather-working Tools c. 1700-1950 and couldn’t find any similar knives, and Salaman covers some pretty obscure leather-working trades ( ie. gut string maker, hydraulic pump-leather maker) but tends contain more English rather than American references.



Below is the German knife from Zaehnsdorf’s The Art of Bookbinding, 6th Ed. 1903. It almost looks like the knife is shaded more heavily on the top edge, to make clear the blade tapers toward the other edge?

german-paring-knife

Going Cryogenic



a2logo



Above is an example of blind stamping, using just water and the heat of the type to create the impression on a piece of vegetable tanned horsebutt leather.  The font is Edinburgh, brass type from P & S Engraving in the UK, the top line 14 point, the bottom two 10.  I’ve had these letters for 20 years, and the wear, especially on the “Y” in “PEACHEY” is evident- time to get some replacement letters!  This is the stamp on the blade cover for the new, A2 knives which has been cryogenically treated.  For more technical information about cryrogenic treatments check out nitrofreeze. Please read more about the new knives in  the new tools page on the right, and the results of testing in the post below which convinced me to use this new steel for leather paring knives.






The Testing of Steel for Leather Paring Knives

As the result of my own experience,  feedback from some of my colleagues, and the results of scientific testing, I’ve become convinced that A2 cryro and machine hacksaw blades (M2 or M3 steel) are the best steel types for bookbinding knives.  By best, I mean they offer what I consider an optimum balance of edge retention, initial sharpness, ease of resharpening and price for a leather paring knife.

Four leather paring knives were tested by Cutlery and Allied Trades Research Association (CARTA), located in Sheffield, England. The knives were tested for Edge Angle, Hardness, Initial Cutting Performance  and Cutting Edge Retention.  The steels tested were O1, A2, Machine hacksaw blade, and T15.  All the steels rated very good to excellent, overall.  O1 is a popular, standard knife steel, which I make many styles of knives out of, and it works very well on regular, vegetable tanned goat.  Machinery’s Handbook recommends it when extreme sharpness is required. A2 is a newer, high tech steel gaining favor among woodworkers, since it holds an edge longer than O1.    Most large woodworker blade suppliers make both O1 and A2 versions of plane blades, so there is some personal preference involved- do you like to spend a slightly longer time sharpening (A2) or sharpen more often (O1).  Some type of overall time analysis might be conducted, but I can’t imagine it would be very informative given the wide range of unique variables the affect knives in use and when resharpening.  Some bookbinders also use knives made from D2- but I find the high chromium content and coarse carbide structure (up to 50 microns!) make it cut poorly, more like stainless steel than a tool steel.  Fully hardened machine hacksaw blades are traditional metal (starting mid. 20th C.?) for bookbinders to make paring knives from, I assume since it can be purchased already hardened and shaped by stock reduction. Starrett told me their “Red Stripe” blades are made from M3 steel, and I have read the English Eclipse ones are made from M2.  T15 is a super expensive, very high tech steel that outperformed all the other blades, but the inital cost to me, and the number of grinding belts it ate up and time it took when shaping would result in a $750 knife, and  I doubt anyone would purchase a $750 knife.  And you would almost require a set of diamond stones to resharpen it.

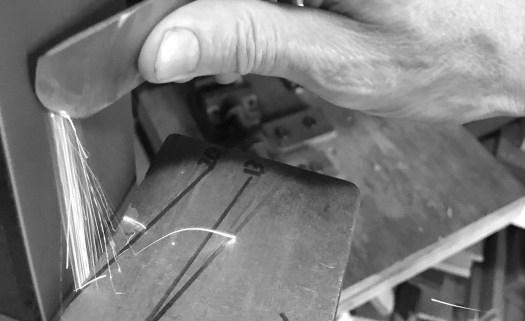

I shaped and sharpened all of these knives by hand to a 13 degree angle.  I suspect it is one of the first times that these types of steel were tested at such low angles– at typical woodworking blade is usually 25+ degrees.  The blades were shaped on a 2 x 72″ Cootie Belt Grinder, progressing through US grits of 36, 100, 220, followed by hand sharpening on 3M microfinishing films of 40, 15, 5  microns, then stropped on vegetable tanned horsebutt with a .5 micron chromium oxide and finished by stropping on the flesh side of undressed vegetable tanned calfskin.  The sharpness was tested on a pack of test cards containing 5% silica for 60 cutting cycles, 50N test load and 50mm/sec. test speed.  CATRA has invented and sells many machines for sharpening and knife testing.

1. BEVEL ANGLE

Although I was attempting a 13 degree angle, the edge angled measured between 14-16 degrees for all of the knives when measured with a laser goniometer.  I think this is the result of not being able to hold the knife angle consistently enough when sharpening and the result of stropping.  There also was a general tendency for the angles to be slightly more acute (.5- 1.5 degrees less) at the sides of the cutting edge as compared with the middle.  This is most likely the result of natural hand motion when sharpening, since I usually sharpen parallel to the cutting edge. I suspect if I was in the habit of sharpening perpendicular to the cutting edge, the edge angle would be even more obtuse.

2. HARDNESS

Average from three testing points near the cutting edge in Rockwell C scale.

A2 – 62

Hacksaw (M3) – 64

O1 – 64

T15 – 65

3. INITIAL CUTTING PERFORMANCE (mm)

This is how “sharp” the knife is; how far it penetrated into the cards during the first three cutting strokes.

Tested in accordance with BS EN ISO  8442-5: 2004, Part 5 (Clause 3.4- Cutting Performance)

A2 – 107

Hacksaw (M3) – 107

O1 – 98

T15 – 116

4. CUTTING EDGE RETENTION (mm)

This is how long the edge lasted– ie. the ability for the edge to resist wear.  This is the cumulative depth of  60 cycles of cutting the test pack.

A2 – 522

Hacksaw (M3) – 586

O1 – 395

T15 –  921

CHART OF CUTTING EDGE RETENTION RESULTS

A2 is light blue

Hacksaw is green

O1 is dark blue

T15 is red

CONCLUSIONS. Initially, A2 has a slightly slower rate of dulling, which may be an advantage, but later in the test the Hacksaw slightly surpasses it.  The O1 seems to have a very constant, predictable rate of dulling- the graph is very smooth.  The T15 is incredible- even at the end it was still cutting quite deep, and each cut it still quite deep.  Since O1 is about 400, and A2 is about 600, does this mean A2 is 20% better?  Given all the complex variables in use, it is hard to accurately  observe.  As with most scientific testing, a primary conclusion is the need for more testing.  I would like to compare bevel angles at 2.5 degree increments, add a number of different types of steel, like some of the M and S tool steel classes, maybe some of the new high carbon stainless steels and instead of testing with a sample card containing silica, test actual tanned and tawed leather.  Also the pressure on the blade may be much more than is necessary (or possible) to pare leather, and the sawing motion of the testing machine is different than a more static blade motion that bookbinders use.

knife-shart1

Poor Quality Steel and Sharpening

This is a great example of both sharpening problems and low quality steel. This photo is of the back of a curved leather paring knife. It is a bit difficult to see in the photo, but the darker, shiny area below the cutting edge has been highly polished. Unfortunately, our unnamed client,  let us call him Mr. B, neglected one of the first principals– feeling the burr. Once you feel a burr on a cutting edge, it means that the two planes (bevel and back of the knife) have gone past the point where they meet. As William Blake says in the Proverbs of Hell, “You never know what is enough unless you know more than enough.” The burr lets us know we have sharpened the edge more than enough, and can proceed to the next grit. A great deal of time was spent creating a polished area , that will not affect the cutting ability at all, and be instantly removed once someone attempts to regrind the knife.

The knife edge was dropped, and on the left side of the blade there are some chips, and on the right side you can see bent metal. What does this tell us? That the steel was improperly hardened. Any steel that is hard enough to pare leather (at least Rc 55 or so) should be brittle and chip if damaged, not bend like on the right side of the photo.
