New Tool: Deluxe Delrin Lifter

The Deluxe Delrin Lifter.

Most lifting tools are quite thin. Usually, this is great. But the thinness of the lifter results in a lack of control at the tip. In order to counteract this, I’ve come up with a very long wedge shape lifter that provides an an incredible amount of control for lifting, twisting, sliding, and prying. The straight cutting edge and rounded corners also aids precision manipulation.

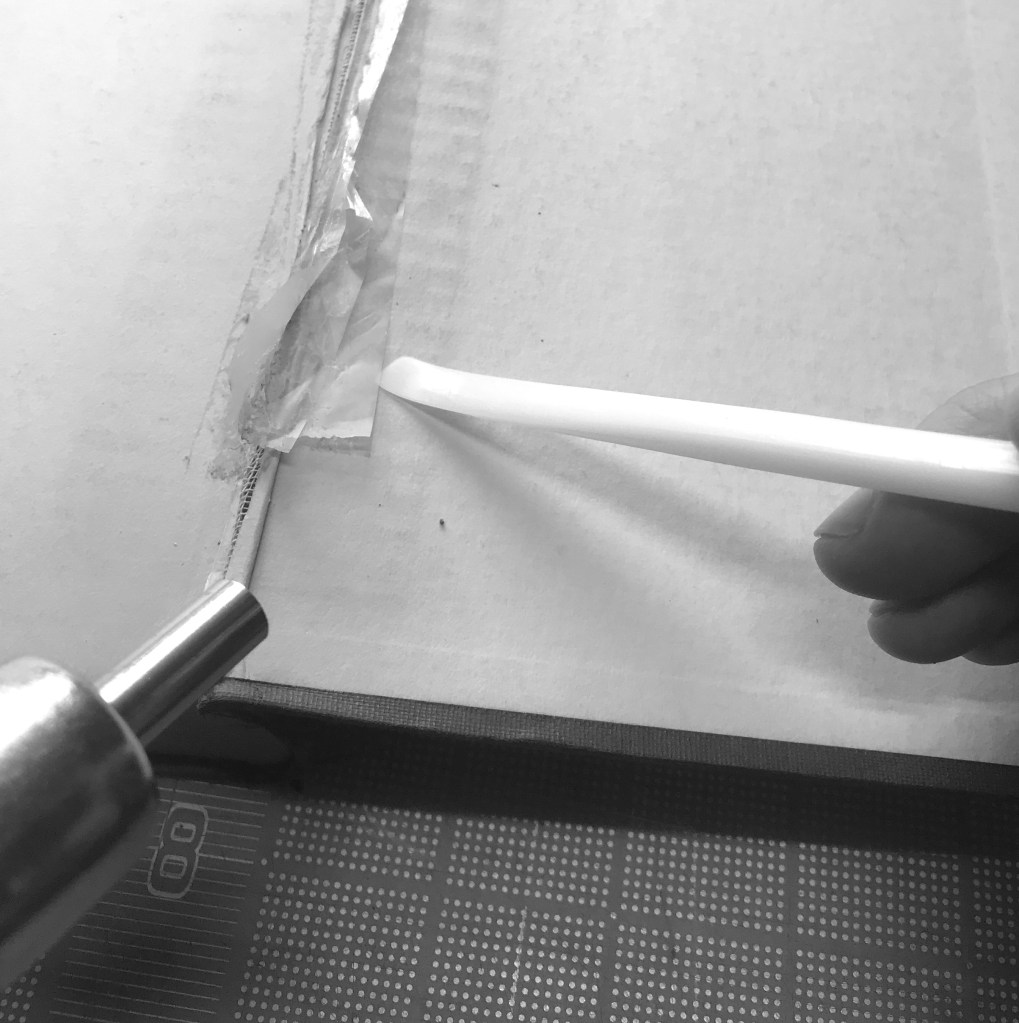

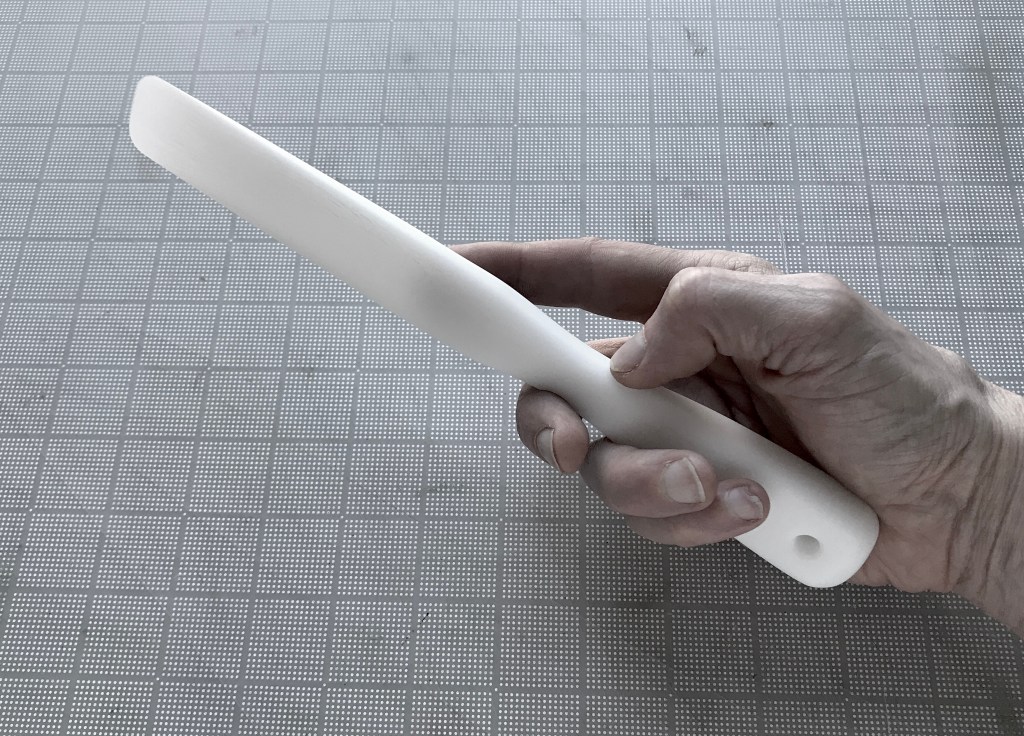

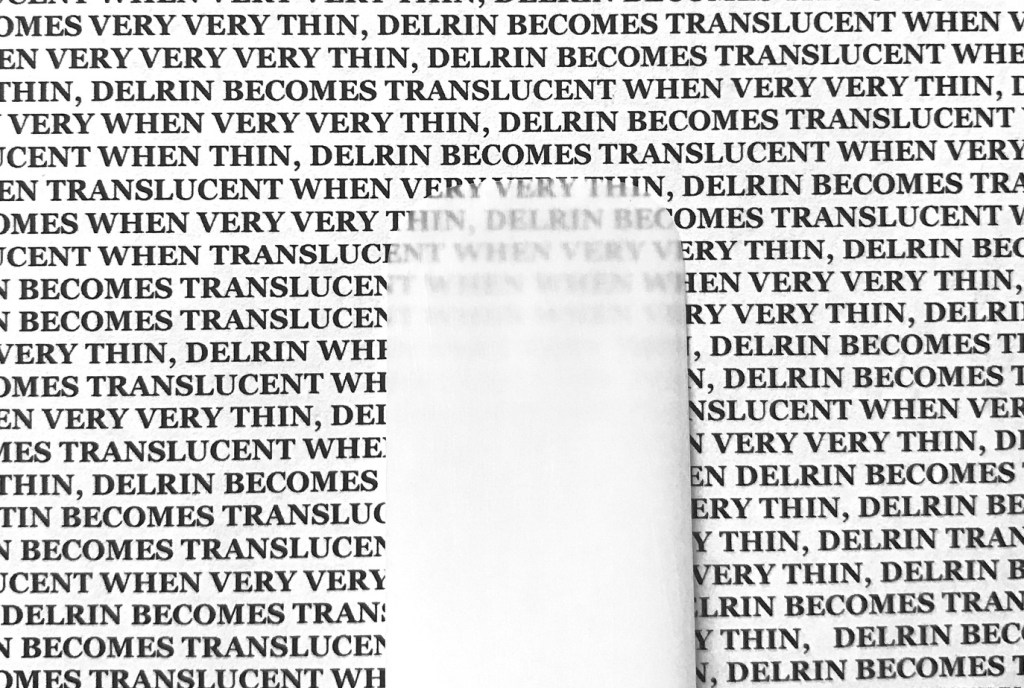

This Deluxe Delrin lifter is designed for the lifting covering materials, backing removal, hinge removal, and tape removal. The cutting edge is flexible and so thin that the white delrin becomes translucent, a feature that could be useful in certain treatments. Delrin has a very low coefficient of friction, close to Teflon. The handle is hand carved out of a bar of Delrin .75 inch thick and an inch wide. The length gradually tapers, and the weight gives this precision tool a solid heft and a tremendous amount of control.

A must for paper, book, photographic, and other conservators and restorers. The length varies between 8 – 10 inches, since it is difficult for me to get a sharp, translucent, and flexible edge. They tend to get shorter and shorter as I work on them! If the overall length is critical to you, send me a note and I will let you know what is in stock.

Between 8 — 10 x 1 x .75 (thickness at the handle) inches. Tapered gradually along the length. The cutting edge is straight with rounded edges, to facilitate twisting and prying. A basic kit for maintaining the edge with instructions is included.

The Deluxe Delrin Lifter $95.00

The Deluxe Delrin Lifter.

Delrin Lifting Tool

lifting1
Top of Delrin lifting tool. The tip is sharp for about an inch on each side. The rest of the tool edges are rounded for a comfortable grip..

lifting2
Detail of the general shape of the tip.

lifting3
Detail of the gradual reduction in thickness at the tip.

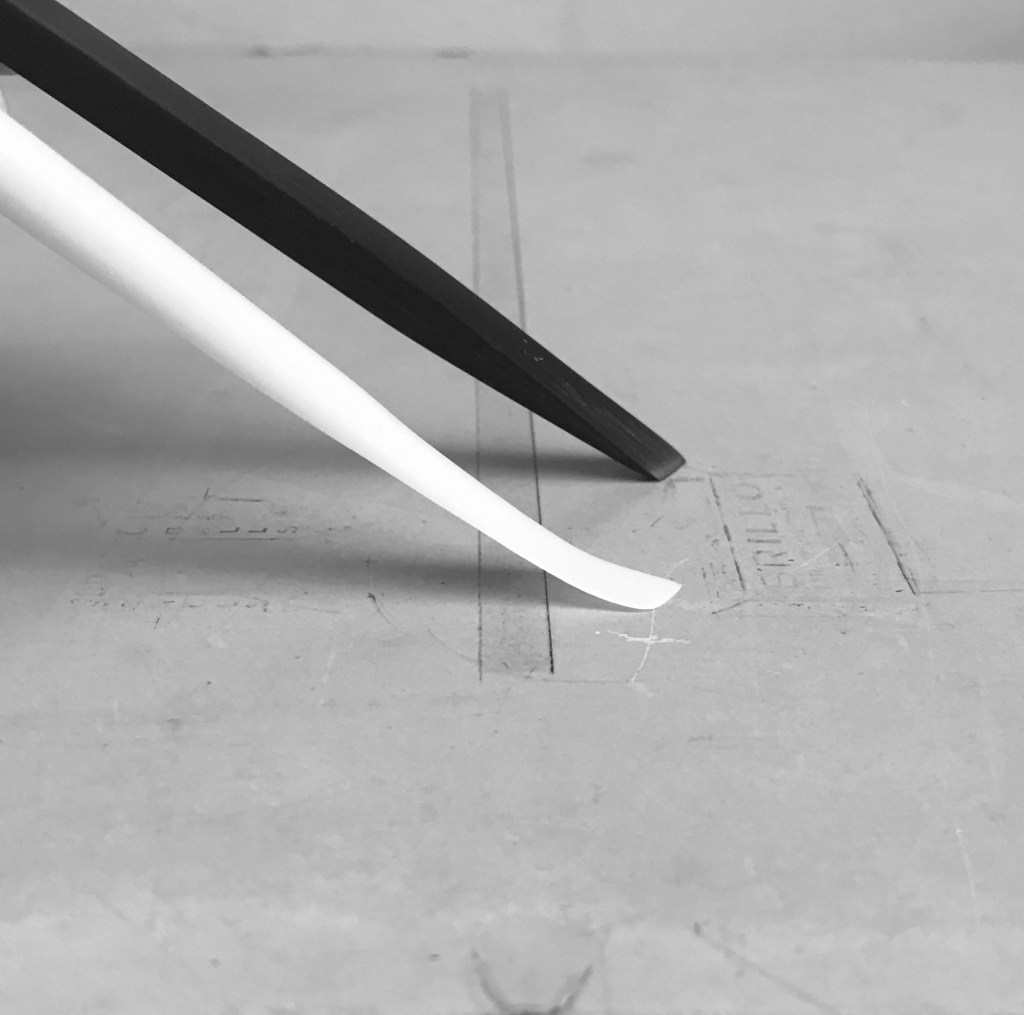

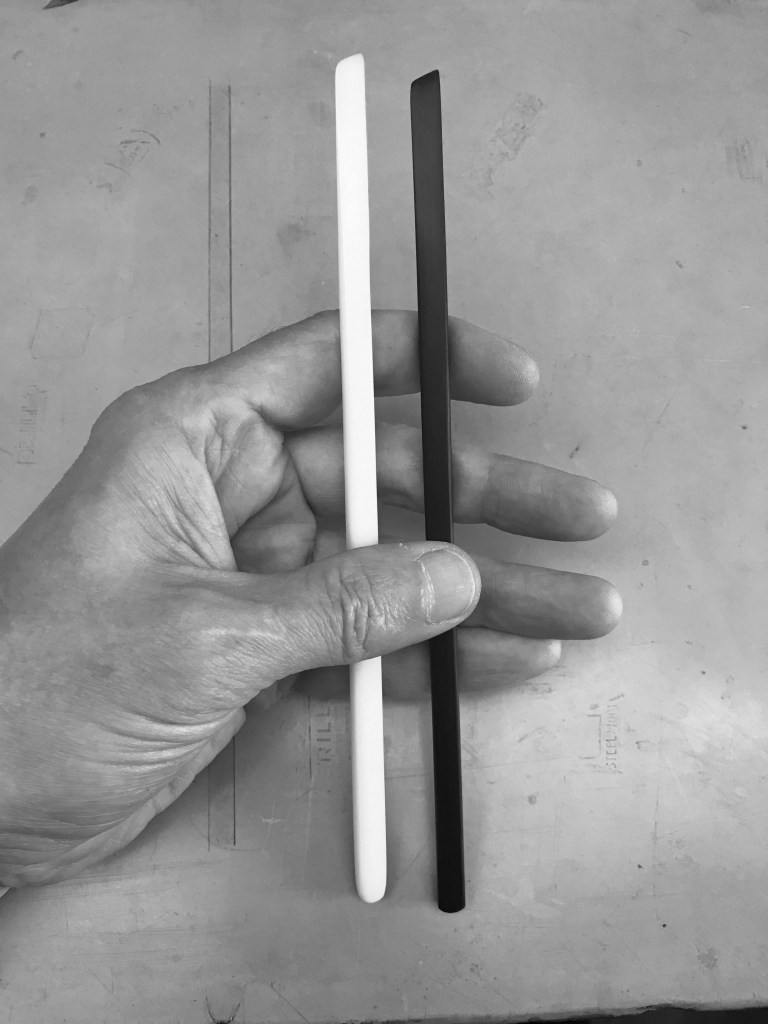

This delrin lifting tool is useful for general lifting, mechanical backing removal, and whenever you need to gently pry or delaminate something. Both book and paper conservators will find this an essential component of their toolkit. Although it is thicker than the carbon fiber lifter I make and sell, it has a slightly lower coefficient of friction, so slides a bit better, and it is more ridgid. If you like your teflon lifter but are tired of how easily the cutting edge bends, this might be the tool for you. Obviously, it is not as durable as metal.  But it is always great to have as wide of a range of tools as possible.  These delrin lifters are hand sharpened to achieve the best possible balance between initial cutting performance and edge retention. The edge is easy to maintain by sanding or scraping. Click on “Tool Catalog” above for ordering information.

DELRIN LIFTING TOOL.  Around 12 x 1 x .125″.  $40
