One of the most common mistakes in sharpening is to allow your stone or film to glaze over. This significantly increases sharpening time, since the knife is not abraded by the grit, but is burnished against embedded steel. Not using enough lubricant is a common reason for this, as is not regularly cleaning your substrate. Depending on the size of the grit, either a microfiber rag or a white vinyl eraser works best.
My sharpening setup, above, consists of a bright swing arm lamp mounted directly above a cork faced workbench (PSA cork shelf liner), a microfiber rag, a large squeeze bottle of water, and the Peachey Sharpening System. I find it more comfortable to sharpen at a lower height, around 34 inches, than my regular bookbinding workbench. Many hundreds of knives have been sharpened here!
The microfiber rag is perfect for cleaning larger grit 3M micro-finishing film, from 80 to around 15 microns. This rag was white when I purchased it, a testament to how well it picks up and retains small metal particles. I also use it to clean off the knife between grits in order to examine the scratch patterns.
For 5 micron and smaller grits, a white vinyl eraser works wonders. Pictured above is the neon lime green 1 micron film, which glazes quite easily. Using the eraser on coarser grits eats it up too quickly.
Of course, over time, the abrasive will wear to the point nothing much happens, and you will need to replace it. I can usually sharpen ten knives or so on one piece of 2 x 11 inch film.
By using plenty of water as a lubricant, and cleaning the film after each use, the effective working life of finishing film will be prolonged.

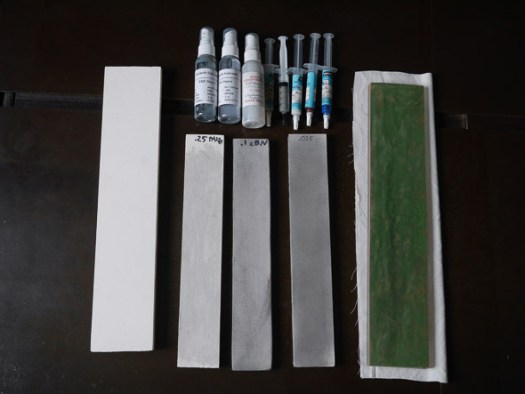

Some of the stropping sprays, pastes, and substrates I’ve been experimenting with.
A meter was originally intended to be one ten-millionth of the distance from the North Pole to the South Pole where it passed through Paris. The Measure of All Things is a facinating book by Ken Adler which documents this feat of triangulation — in the middle of the French revolution, no less — and also explores how the defined length of a meter has since changed. A millionth of a meter is a micron. As a point of reference, a hair on your head is about 40 microns wide. A thousandth of a micron is a nanometer. Yes, I’ve been thinking small!
Typically, I hand sharpen following a grit progression of 80, 40, 15, 5, micron on 3M microfinishng films with water as a lubricant, strop with a .5 micron Chromium Oxide (CrO2), honing compound on the flesh side of a horse butt strop, then finish stropping on naked flesh side kangaroo. Don’t get me wrong, this works quite well. And there are many other ways to sharpen a knife.
Inspired by some other sharpening approaches, two aspects of my routine seemed to need a little tweaking. First, I eliminated the large jump between 5 and .5 micron, and found some finer grits for a final stropping. Adding a 1 and .3 micron 3M PSA finishing film filled in the gap nicely during sharpening. And a final stropping with a .1 micron Poly Crystalline Diamond (PCD) diamond on polyester leather has dialed up the sharpness to eleven.
3M finishing film. The lime green is one micron, and the very bluish looking (in this image) white is .3 micron. The delrin plate is in the back.
PCD or Cubic Boron Nitride (CBN) compounds smaller than .25 micron don’t work well on real leather for two reasons: the expensive spray soaks into the leather and disappears alarmingly fast, and the natural abrasiveness of the leather itself is sometimes coarser than the spray.
One solution is to use a polyester leather, which is similar to “nanocloth”, a term Ken Swartz has coined and a great product he sells. Polyester leather is made from an ultra micro fiber that holds sub-micron sprays incredibly well, is very thin so the cutting edge does not become rounded, and is extraordinarily durable. Human hair is roughly 20 denier, but this ultra micro fiber is .04 denier. Denier is the mass in grams of 9000 meters of a given fiber. It is difficult to imagine how small and light this fiber is: 9 kilometers (over 5.5 miles) of it only weights .04 grams! All of these tiny little fibers hold the diamond particles loosely while allowing them to move around a bit, exposing new sharp edges. I think this is why they last so long.
In other words, this polyester leather is a perfect substrate for .25 micron and smaller sized sprays. I’ve experimented with the .25 micron (~64,000 grit, 250 nanometer), .1 micron ( ~160,000 grit, 100 nanometer), and .025 micron ( ~640,000 grit, 25 nanometer). These are available in PCD and CBN. The diamond seems to stay sharp longer (because of the shape and hardness?), cuts a bit faster, though is more expensive. The .25 micron is pretty close to the .5 micron CrO2 I usually use, and though it does cut quicker and lasts longer, it seems an unnecessary expense. Waxy pastes don’t apply or stick well to polyester leather.
In terms of initial cutting performance and cutting edge longevity, I can’t really tell much, if any, difference between blades stropped with the .1 micron or .025 micron. Even so, the idea of a one fortieth of a micron edge does have an almost irrational appeal, but is it just a placebo effect? Also theoretically, the smaller the grit progression in your sharpening sequence, the finer the cutting edge, and the faster you get there. But everyone has to decide for themselves if the trade off in time spent sharpening is worth the final result.
Diamond compounds are expensive, but once they are loaded onto the polyester leather they last for a long time. In my experiments, I’ve used a single polyester leather strop loaded with .1 micron for over 100 knives without recharging, and it isn’t dead yet.
I’m a convert to this new sequence. It really doesn’t take much additional time, and the resulting edge is better. All the knives I make now follow a 80, 40, 15, 5, 1, .3 micron sharpening sequence, and a .1 micron stropping. When I am paring leather for my own projects, I do a two stage stropping sequence to keep the knife sharp. First, a .5 micron CrO2 on horse butt followed by .1 micron PCD on polyester leather. Once the edge becomes too obtuse, then it is time to resharpen.
Choose your poison and treat yourself to a sharpest knife you’ve ever experienced for this Christmas!
SuperStrop. Note how thin the polyester leather is on the far side, as compared to the horse butt.
SUPERSTROP
The Superstrop has a half inch thick cast acrylic core, which is the flattest plastic available, as well as being very dimensionally stable. Flesh side horse butt is mounted on one side and flesh side polyester ultra-microfiber leather on the other. The strop has a nice heft, about 14 ounces, so it doesn’t move around on the bench while stropping. The polyester leather comes loaded with .1 micron Poly Crystalline Diamond (PCD) compound, which should last a very long time. Sub-micron diamond replacement sprays are readily available. Replacement PSA horse butt and PSA Polyester leather is also available. When working, I like to use the .5 micron Chromium Oxide (CrO2) honing compound on the horse butt, wipe off the knife to prevent grit contamination, then finish with the .1 micron PCD. Also available with polyester leather on both sides, loaded with .1 and .025 micron PCD.
Once a year I teach a knife sharpening and tool making workshop in the bookbinding department at North Bennett Street School (NBSS) in Boston. NBSS has the finest bench oriented two year bookbinding program in the world. If you have the passion, drive, commitment, dedication — and are crazy enough to pursue this antiquated profession in the 21st century — this is the place to do it. You will find many kindred spirits in your cohort.
I cover all aspects of sharpening related to bookbinding: blade angles, bevel angles, types of steel, types knives, types of grits, grit progression, hand grinding using power tools, free hand sharpening, and stropping. These techniques can be adapted to virtually any type of sharpening system: oil stones, diamond stones, waterstones, lapping powders and finishing films. Free hand sharpening throws many students into the deep end, for a while, but ultimately equips them to sharpen most types of edge tools. Most bookbinding knives have complex shapes and handles which preclude the use of jigs or honing guides.
The foundation of this class is critical looking. Critical looking is not only closely watching the instructor demonstrate a technique, but it is looking at what you have done. Often when sighting or aligning, one eye is better than two.
Once you can visually analyze what your hands have done, then you can correct, alter, adjust, repeat your hand technique. Critical thinking is taught via writing in undergraduate curriculums. Could critical looking be linked to drawing? Taking a photo or shooting a video can be a useful shortcut for note taking that may gloss over important aspects, such as processing and replicating. Drawing really forces you to look closer, again and again and again.
Critical looking is different from just looking. In a narrow sense it means learning to interpret what you are looking at, what the scratch patterns, reflections, divots, rounded bevels mean in relation to how you were holding the knife. In a broader sense it means understanding what the effect of your actions are. Critical looking is the basis of all sharpening, maybe all craft skills?
Below are some images of the 2017 workshop shot by Brian Burnett.
All Photos Copyright 2017 Brian Burnett. And he was critically looking.
