NEW! For Sale: Sharpening System 3

There are three major improvements to this Sharpening System: Delrin plates for easy removal of used finishing film, an upgraded tightening knob, and larger feet for added stability. I’ve tested this new system for over a year for all the knives I make. Verdict? Excellent, IMHO.

ss3-3
Sharpening System 3. End view with Delrin plates.

First, and most importantly, the support plates for the microfinishing film are now made of Delrin instead of aluminum.  This makes it possible to easily peel off the worn finishing film without using solvents or a fair amount of elbow grease. It stays flat, and doesn’t dish out. The microfinishing film stays in place when in use. The Delrin plates are first machined, then hand lapped. They are 12″ long, 2″ wide, and 3/4″ thick.



ss3-2
Sharpening System 3. Detail of the precision knob.

The second upgrade is to the adjustment knob.  Previously, it was simply tapped through the end of the stand, with a coarse thread.  The new adjustment knob is made from stainless steel, has a very fine pitch, threaded through a phosphor bronze bushing. There is virtually no backlash, and nothing to rust. The end of the threaded rod contains a rounded ball, which prevents torquing of the plate while tightening. I’ll be the first to confess that this optical grade adjuster is not absolutely necessary, but, man, it is nice! Like a manual focus Leica lens.

Precise and accurate tools help perform precise and accurate work. At least, his is how I rationalize expensive tools… .

Lastly, in order to make the stand a bit more stable, the hard rubber feet are now one inch wide, with a flatter profile, giving more anti-slip contact with your bench. They can also adjust a bit to level.

This Sharpening System is a quick and convenient way to sharpen,  resharpen and keep all your knives and edge tools in peak condition, from scalpels to scimitars, plane blades to plough blades. This is a lightweight, easy to store and unbreakable system. Perfect for travel and classroom use, since there are no expensive stones to dish out, glaze over, or break.

The 3M finishing film cuts all modern high tech steels quickly and evenly. Replacement 80 micron film is available from Rio Grande; the 40, 15 and 5 micron from Tools for Working Wood.



ss3-1

The system contains everything you need: a sharpening stand, two Delrin plates, four 11 x 2″ strips each of 80, 40, 15 and 5 micron 3M PSA micro finishing film, a 12 x 2″  Genuine Horsebutt Strop, and 1 oz. bar of green chromium oxide honing compound.

SHARPENING SYSTEM 3:  $285.00      Order here

New! Aluminum Plate Sharpening System II

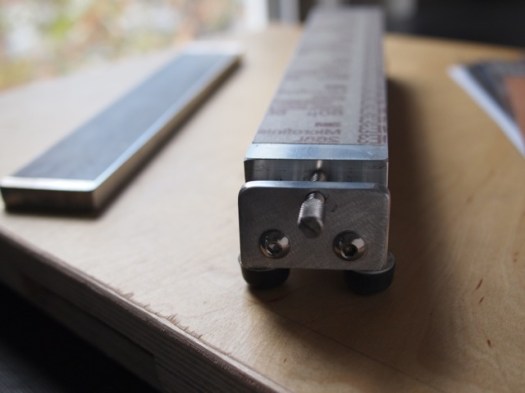

I’ve made three significant improvements to the aluminum plate sharpening system. First, the plates themselves are now a half of an inch thick, rather than a quarter.  This aids in their stability if used without the holder. Secondly, the plates are now machined with a flycutter, which results in a flat surface and regular pattern.  Thirdly, the plate holder has been redesigned. Now, a knurled adjustment knob allows quick and easy flipping and switching of the plates without tools. It now only takes 3 seconds, even if you work slow. The stand is all aluminum with stainless steel screws so there is nothing to rust.

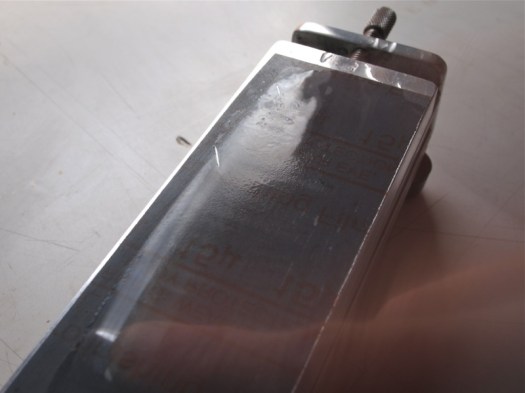

These plates are used the same as any sharpening stones. The plate holder has four rubber feet to keep it from sliding around. I generally use water as a lubricant to keep the metal particles from glazing over.

This is the system I use to make and sharpen all of my knives. People often ask how long each abrasive sheet lasts, and although there are many variables, I’d guess I can generally sharpen about 10 knives on each one. Of course, if you are trying to reshape a bevel angle or repair a major chip you might use up an entire sheet. When a sheet is exhausted, simply peel it off and stick a new one one. You must trim the edges of the edges of the finishing film when you put a new sheet on, so that it does not overhang the edges. Otherwise it may give you one of the nastiest, dirtiest, slow-healing cuts you have ever had, DAMHIKT. 80 micron replacement sheets are available from Rio Grande; the 40, 15 and 5 micron from Tools for Working Wood.

I’m convinced it is the easiest, quickest, and most convenient way to resharpen and keep all your knives and edge tools in peak condition, from scalpels to scimitars. This system is a lightweight, easy to store and unbreakable. Perfect for travel and classroom use.

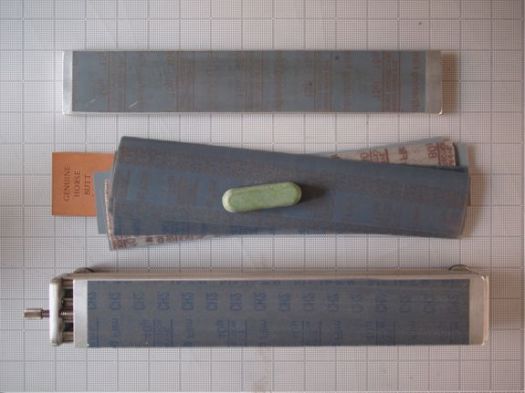

The system comes with four 11 x 2″ strips each of 80, 40, 15 and 5 micron #3M PSA micro finishing film, a 12 x 2″  Genuine Horsebutt Strop, and 1 oz. bar of green chromium oxide buffing compound. The entire system is 13 x 3 x 2.5″, 3 lbs. 4 oz.

ITEM #SS2: Introductory price  $225.00

Tips on sharpening are located here, and tips on stropping here.
