Tool Holder

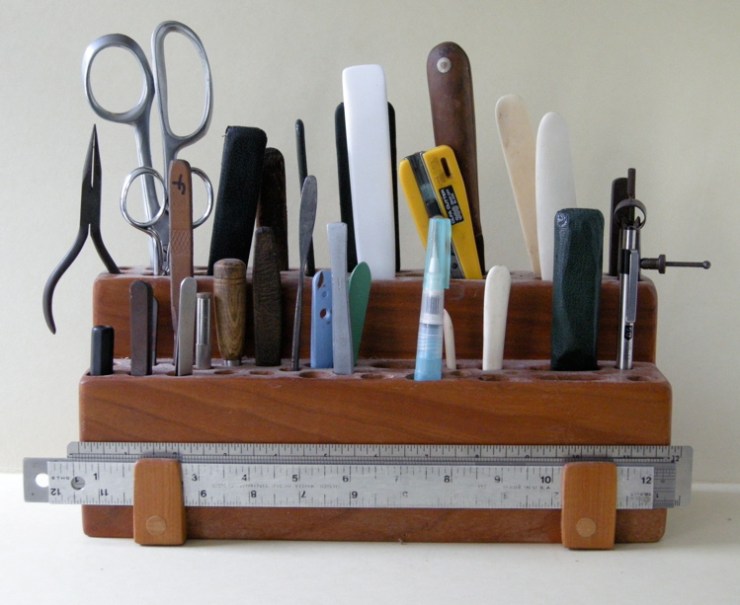

About three years ago, I got tired of never being able to find the basic tools that I used the most.  I kept them in a couple of cans at my workbench, and they ended up all over the place by the end of the day.  I decided to first analyze which tools I actually used the most, which turned out to be a tiny fraction of the tools I had, and devise some kind of storage so that I could easily reach and immediately put back when I was finished.  Although it took a bit of time to do this, I estimate it saves about 5-10 hours a year in time spent looking for tools, which is significant. I constructed this holder out of two pieces of eight quarter cherry. I also made a travel box for working on-site that has a similar system built in.

In case anyone is interested, below is a list of the tools that I use to accomplish about 90% of my normal tasks, and a few comments.  Not pictured are brushes and larger rulers.

ON THE TOP ROW, LEFT TO RIGHT

-Needle nose pliers

-6″ Mundial embroidery scissors (small, yet the tips can cut through a double layer of aero linen)

-Osborne “E-Z Cut” scissors (these can cut through binders board)

-Medium lifting knife

-Covering knife

-Small lifting knife

-Large lifting knife

-Large teflon folder

-Olfa knife (the ones with a knob are less likely to pull out when cutting something thick)

-Bench Knife

-Two large bone folders

-Two small dividers (less than 4″, leatherworkers ones that operate by friction are easy to adjust)

ON THE BOTTOM ROW, LEFT TO RIGHT

-Starret pin vice (the octagonal plastic handle keeps it from rolling off the bench)

-Four Dumont & Fils tweezers, #2a, #10-00 and 2 #5’s  ( #5 is a sharp point, #2a a wide thin point for tissue, and #10-00 a convex / concave points for gripping)

-Insertion tool

-Small awl

-Japanese  awl

-Rigid scalpel (good for scraping)

-Italian microspatula

-Two plastic handle scalpels,  #11 and #15 blades (plastic is slightly flexible and more comfortable than steel)

-Rigid scalpel

-Japanese brush pen, 50/50 ethyl alcohol and water

-Two small bones

-Hacksaw english style paring knife

-.5mm mechanical pencil

ON THE BOTTOM

-Four rulers (one thin cork backed for tearing tissue and trimming endsheets, two thicker steel often used as spacers and to tear tissue more ragged, 7/8″ wide aluminum which is turn-in thickness)

BEHIND THE STAND, mounted in a recessed area

-A brass 4 inch triangle











5 thoughts on “Tool Holder

  1. Pingback: knife box « jeff peachey

  2. chris jones

    hey sorry to bother u again… but im trying to make something like this too… what kinda of cherry wood is this? and did you put any finish on it like a varnish , or stain, if so what kind thanx..

  3. Jeff Peachey Post author

    It just ‘cherry’ as in the fruitwood, not ‘cherry’ in the slang sense of being very nice. You can either make the holes with a drill press and Forester bits, or use a hand brace and auger style bits. I think I used a couple of coats of boiled linseed oil (although I’ve had some problems with cherry getting blotchy and have now switched to a thin, wipe-on satin polyurethane) followed by a pastewax. Buff it up and put a bit more pastewax on it once a decade and you are set for life.
