I recently finished teaching a month long workshop on historic bindings for the Library and Archives Conservation Education Consortium of Buffalo State University, New York University, and the Winterthur/ University of Delaware. LACE for short. Seven MA students in conservation completed six historic models from the 15th to the 20th centuries.

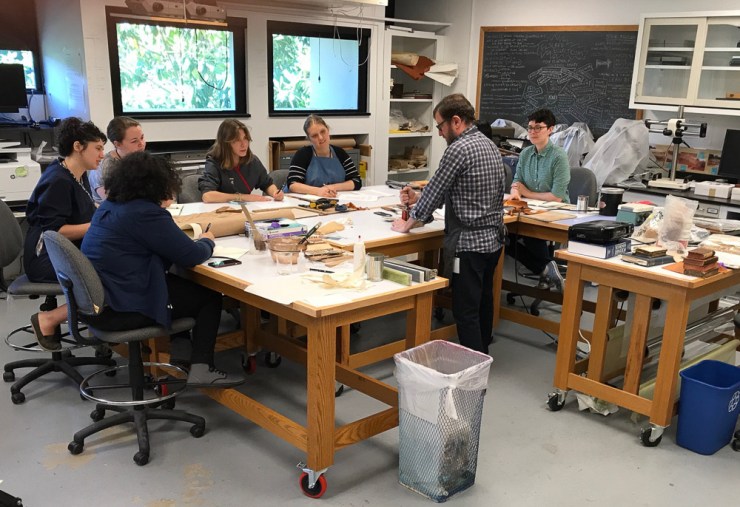

This year it was hosted by The Winterthur/ University of Delaware Program in Art Conservation and took place in the first year student classroom, which is a really great space to teach in. The room has individual work stations for the students, as well as a group area with moveable work tables for lectures, ppt’s, discussion, and demonstrations.
It is important that the students can be comfortable and close enough to observe details during demonstrations. In this configuration, students could sit to watch and take notes, and I could stand, which is how I like to work. Having a task light would have made it ideal.

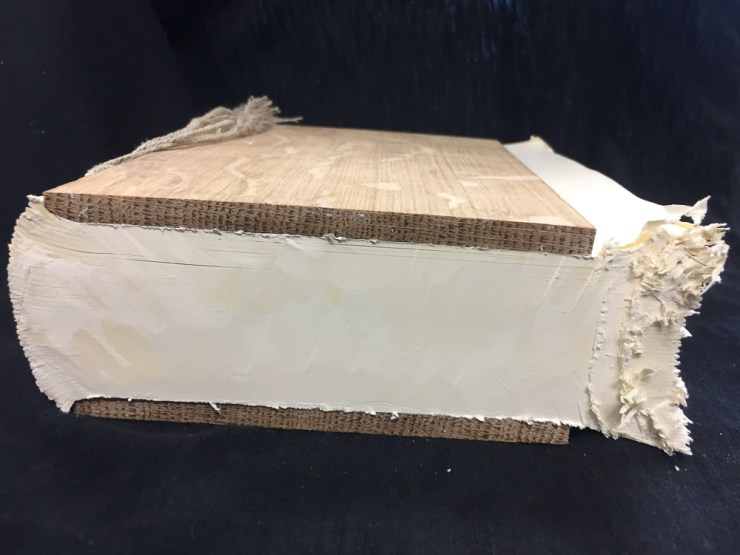

For our late Gothic model, some of the students wanted to try out a drawknife instead of a plough for edge cutting. Nicole Alvarado worked the edge in the above image. We found it quite difficult it is to achieve an edge that looked like historic examples. We had to start with the sides of the bookblock in order to shave it down. The resulting edges did not look like the example depicted in Fig. 9.14 from J.A. Szirmai’s The Archaeology of Medieval Bookbinding or on a first first folio of Shakespeare.
The edges on the Shakespeare and in Szirmai were presumably cut with a skewed and sliding stroke of a drawknife, with one stroke at a time advancing a significant amount through the book. It is easy to imagine this when looking at the images. We found it impossible to replicate this, though. Was our drawknife too small, the blade angle too obtuse, modern paper too hard, or our arms too weak? A combination of all of these? Or was a different tool used? In both of these examples, each chop could have been caused by an aze or adze, in order to penetrate so far through the thickness of the bookblock. Time for more experimentation!
In bookbinding, usually vegetable tanned goat is the easiest leather to pare, followed by vegetable tanned calf, then tawed goat or calf. Tawed pig the most difficult. Tawed skins are quite abrasive, and quickly dull any knife. Karissa Muratore did a wonderful job of paring an alum tawed calfskin for her Gothic Model binding. Although tawed pigskin would have been traditional, all of the major bookbinding leather producers are no longer offering them, citing difficulty in obtaining quality raw skins.

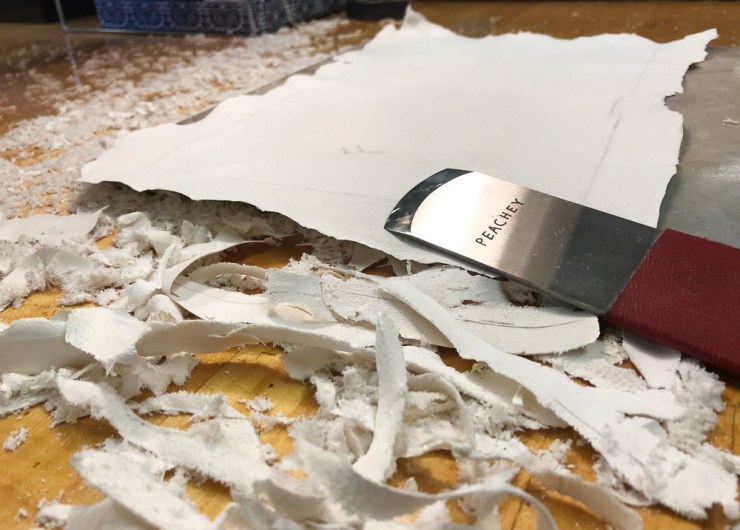

Karissa’s image illustrates how a rounded blade knife can be used for edge paring (note the pieces in the foreground) and scraping (note the shavings in the background). Scraping is a safe, but slow way to even a skin out, as well as thin the spine and headcap area. I think that 15th century binders would have received the skins the appropriate thickness overall from the tanner, and only had to edge pare.
This late Gothic binding — clasps, alum tawed skin, wooden boards, double cord sewing — is a satisfying final project, combining bookbinding, woodworking and metalworking skills.
By the end of the month, the students were more than happy to demonstrate what they learned about safe, professional, and thoughtful tool use.
