New Treatment for Red Rot

The Leather Conservation Centre (LCC) in Northhampton, UK released some details of a new treatment for red rot.  It reduces acidity and stabilizes the collagen molecules.  Given the crushing number of red rotted bookbindings, and current lack of treatment options beyond surface consolidation, this is promising news.   It will be interesting to keep an eye on this new product. At present, this treatment is only available at LCC and they are working out details of shipping, packaging, price, shelf life, and a name. The two products they currently sell for leather conservation are SC6000 and Selladerm.

…..

Investigation of Acid-Deterioration in Leather Leading towards Finding a Suitable Product for Treatment

Author/s (*indicate author for correspondence): Y Fletcher*1, A Lama1 , A P M Antunes2, and J Guthrie-Strachan2

Institutions:

1 The Leather Conservation Centre

2 The University of Northampton

E-mail address lcc (at) northampton.ac.uk

Introduction

The purpose of the research was to carry out further investigation into acid-deterioration in leather in order to develop a product that can treat acid-deterioration with prolonged durability.

The two year research project into acid deterioration, with the aim of developing a new treatment, was carried out at The Leather Conservation Centre (the Centre) and the University of Northampton, both based in Northampton, UK. The University has an established leather technology degree programme. The project was a Knowledge Transfer Partnership (KTP) – a UK government backed scheme which links business and an academic institution enabling the business to access skills and expertise to help development of the business, in this case conservation of leather. Funded in part by the Centre and part by the UK’s Technology Strategy Board.

Acid-deterioration in leather, occurs in vegetable-tanned leathers that were predominantly manufactured from the mid-19 Century onward. Acid-deterioration has been observed in a variety of leathers such as bookbindings, gilt leather, screens, wall hangings, upholstery and luggage. The deteriorated leather shows a lower pH (≤3.0) and lower thermal stability. The visible changes usually include a powdery surface (often reddish/brownish, hence this particular deterioration is known as red-rot) and a complete or partial loss of the grain layer (the outer layer of leather); an acrid odour is also sometimes present.

However, care needs to be taken to ensure that a leather object does have acid deterioration and that the visible signs are not for other reasons.

For example, at the Centre we have been shown/given articles purporting to be suffering from “red rot” but which did not in fact have acid deterioration but had other deterioration mechanisms –

  • heavy wear and tear – which had worn away the grain surface
  • deliberate removal of grain surface – where much of the pigmented surface finish had cracked and flaked away, there had been a deliberate attempt to remove all the surface to give an even, though sueded, appearance to the leather surface
  • delamination of the grain surface – a common deterioration mechanism in sheepskin
  • suede and nubuck bookbindings – either a flesh split, or the surface had been deliberately abraded
  • over application of leather dressings – causing blackening of surface with consequent flaking

It has long been accepted that both changes in the leather manufacturing processes and environmental pollutants (such as sulfur dioxide and nitrogen dioxide) are believed to be responsible for the acid-deterioration. There were considerable changes in leather manufacturing processes in the 19th Century to meet the increasing demand for leather; additionally, emission of sulfur due to the burning of coal gas at the time is also considered to be responsible for rapid deterioration.,

Conservation of acid-deteriorated historic leather has long been a concern due to the lack of suitable products for the treatment of acid-deterioration. The purpose of the research was to undertake further investigation into acid-deterioration in leather in order to develop a product that will delay the progress of the decay in acid-deteriorated historic leather.

For conservation purposes, it was decided that the ideal product should have collagen-stabilising properties, acid-buffering capacity, be capable of providing a long-term conservation effect to the acid-deteriorated leather, together with the fact that it would cause no damage to the leather or any other materials on a leather object with which it may come into contact. In addition any product should be safe for the conservators too (with correct use of any necessary PPE).

Materials and Methods

Desk-based research was conducted to review the products used in the past for the treatment of acid-deterioration. Based on the research and personal communication, various compounds were selected and trialled using new mimosa-tanned leather, artificially-aged mimosa-tanned leather and acid-deteriorated leather. Experiments were carried out using Mimosa-tanned leather (new and artificially-aged) and acid-deteriorated historic leather. Artificial ageing was carried out by exposing the leather samples to a concentration of sulfur dioxide (40-80ppm) and nitrogen dioxide (20-40ppm) at 40°C and 30% relative humidity for six and 12 weeks. Analyses were carried out at 2, 4 and 6 weeks for the six week trials, and at 3, 6, 9 and 12 weeks for the twelve week trials.

Differential Scanning Calorimetry (DSC) was used to determine shrinkage temperature (TS) which indicates changes in thermal stability of collagen and a pH test was used as an indication of acidity in the leather (new and artificially aged mimosa-tanned leather and acid-deteriorated historic leather) samples.

Reagents Trialled

The following chemicals were trialled –

  1. Aluminium diisopropoxide acetoacetate ester chelate (9.6% w/w Al) – the term aluminium alkoxide is used in this paper.
  2. 5-Ethyl-1-aza-3, 7-dioxabicyclo[3.3.0]octane – the term Organic Stabiliser is used in this paper.

A preliminary experiment was then carried out to determine the effects of the reagents on new mimosa-tanned leather. The products were then trialled on new mimosa-tanned leather that was previously artificially-aged for 6 weeks and on acid-deteriorated historic leather.

Shrinkage temperature (TS) and pH of the treated samples were determined. TS and pH of the corresponding untreated samples were also determined.

Solvents

White sprit is a non-polar organic solvent and so reduces the probability of solubilising polar components (salts and water soluble tannins) in leather when applied. White spirit is proven to be a safer solvent option and has been used in cleaning of historic leathers and therefore was chosen as a diluent for the purpose of this study.

Determination of shrinkage temperature (TS)

The leather samples were cut into small pieces (≈3 mg), placed in deionised water for a minimum of 16 hours at 20±2°C. The following day the excess of water was removed using Whatman No.1 filter papers and 5-10mg were placed in aluminium crucibles (40µl). The samples were analysed using Differential Scanning Calorimetry (DSC) (DSC822e, Mettler-Toledo, Switzerland). The initial and final temperatures during the analysis were 0°C and 100-150°C respectively at a ramping rate of 5°C/minute. The onset temperature of the denaturation process was recorded as TS.

Determination of pH

The pH of aqueous extract was determined following a British standard method (British Standard Institution; BS1309, 1974). A leather sample, 0.25±0.002g was placed in 5ml deionised water (pH: 6-7; adjusted using diluted sodium hydroxide) and agitated mechanically for 24 hours using a shaker at 20±2°C and 65±2% relative humidity. The following day the pH of the aqueous extract was measured using a standard pH meter.

Results and Discussion

Aluminium diisopropoxide acetoacetate ester chelate (aluminium alkoxide) was first introduced by Calnan (1989) for the treatment of acid-deterioration and investigated further during the STEPand ENVIRONMENT Leather Project, and was recommended as a treatment for acid-deterioration in leather. However, the effectiveness and longevity of this treatment were in doubt and the mechanisms of aluminium alkoxide against acid-deterioration are not entirely clear.

Earlier trials carried out at the Centre showed that aluminium alkoxide both increased the TS and pH of the new mimosa-tanned leather, artificially-aged mimosa-tanned leather and acid-deteriorated historic leather. The increase in TS and pH of new mimosa-tanned leather following the application of aluminium alkoxide indicates that the product has a collagen stabilising effect and an acid buffering capacity.

Research carried out at The British Museum showed that treatment of acid-deteriorated leather using aluminium alkoxide increased the pH from 2.7-3.0 to 4.6. However, it was reported that the pH of the treated leather decreased from 4.6 to 3.0-3.4 after 11 years. No information was found on the thermal stability of the experimented leather. As metal alkoxides are moisture sensitive, the replacement of an alkoxy group (O-R; R=alkyl group) through chelation is usually undertaken to reduce the hydrolysis rate.,, Aluminium alkoxide, although chelated, may hydrolyse completely over a period of time and therefore be unable, when applied on its own, to provide long-term protection against acid-decay.

The research showed that the aluminium alkoxide has an acid-buffering capacity and collagen stabilising property, as it increased the TS and pH of new mimosa-tanned leather, artificially-aged mimosa-tanned leather and acid-deteriorated historic leather. Retanning vegetable-tanned leather with aluminium is known to increase the thermal stability of vegetable-tanned leather. In this study, it appears that the Organic Stabiliser in the formulation reacts with alkoxide to enhance formation of stabilising matrix. The formulation may be creating a similar effect to retanning vegetable-tanned leather with aluminium.

A stabilisation effect on the artificially-aged mimosa-tanned leather and acid-decayed leather was obtained regardless of whether the Organic Stabiliser was applied before, after or in combination with aluminium alkoxide. However, increase in TS was found to be the highest when the Organic Stabiliser was applied in combination with aluminium alkoxide on artificially-aged mimosa-tanned leather.

A formulation containing aluminium alkoxide and the Organic Stabiliser was found to be the optimal treatment for acid-deteriorated leathers. The study showed that the developed formulation not only buffers the acidity, but also increases the thermal stability. The stabilisation effect of the developed formulation on leather is higher than aluminium alkoxide when applied alone. Additionally, after artificial ageing in an acidic environment the artificially-aged mimosa-tanned leather and acid-deteriorated leather that were treated with the developed formulation exhibited a higher TS and pH than the respective untreated control samples (See Table 1).

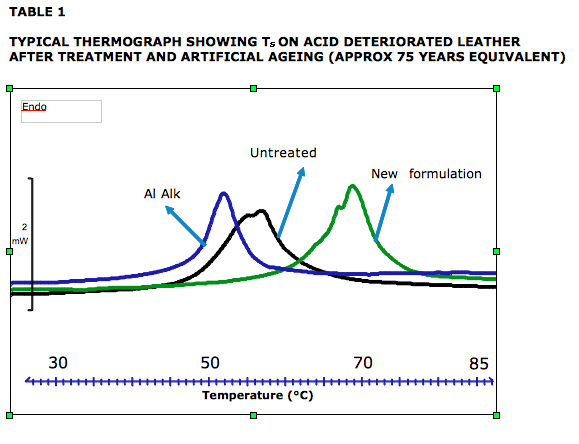

The results of the trials, all carried out with the same method as given above showed that the new formulation reduced acidity (as evidenced by raised pH) and stabilised the collagen structure (as evidenced by raised TS) consistently.

During the study, it was observed that the higher the initial TS of leather, the higher the additive stabilisation effect conferred by the developed formulation. This suggests that treating acid-deteriorated leather at an early stage of deterioration could be beneficial.

It is expected that detailed results will be published in a peer-reviewed journal.

A change in appearance and firmness may occur due to the treatment. It was noted that on several samples the leather became darker and felt firmer/stiffer. Conservators will have to decide whether it is more important to retard the deterioration than to retain the colour and feel of the degraded leather. It should also be noted that acid-deteriorated leather is generally less firm and more flexible when compared to the new leather due to degradation, and the colour may also become lighter as a result of the decay. Therefore, it may be argued that the firmness and darkness observed after the application of the developed formulation may actually be bringing the leather closer to its original feel and appearance.

Humidification tests on a number of treated samples showed that the leather can be humidified after treatment to improve flexibility if required.

Any objects treated for acid deterioration with this new treatment will, almost certainly, need further remedial conservation treatment.

CONCLUSION

The benefits of the developed formulation are summarised as follows:

  • Increase in pH
  • Increase in thermal stability
  • Capable of providing long-term protection against artificial ageing
  • Once applied, further conservation treatments can be carried out.
  • If necessary the leather can be consolidated (Cellugel was used in trials) before or after the Organic Stabiliser is applied.

Yvette Fletcher BA (Hons), MA, ACR

Head of Conservation

References

  1. Haines, B. M. (1980) The Structure, manufacture and Mechanisms of Deterioration of Book binding Leathers: Part 3, Minimising Deterioration in Polluted Atmospheres. In Conservation of Library and Archive Materials and the Graphic Arts: Abstract and Preprints, Cambridge 1980,. Institute of Paper Conservation and the Society of Archivists London, Guy Petherbridge.
  2. Larsen, R. (1995) Fundamental aspects of the Deterioration of Vegetable Tanned Leather. The Royal Danish Academy of Fine Arts School of Conservation.
  3. European Commission (1996) Environment Leather Project, Deterioration and Conservation of Vegetable tanned leather. Coordinator: R. Larsen. European Commission, Protection and Conservation of The European Culture Heritage, Research report no. 6. Denmark: L. P. Nielsen Offset Desktop Bogtryk.
  4. Larsen (2000) Experiments and Observations in the Study of Environmental Impact on Historical Vegetable Tanned Leathers. Thermochimica Acta, 365: 85-99.
  5. British Standard Institution (1974) Methods of Sampling and Chemical Testing of Leather, London, British Standard Institution.
  6. Calnan, C. N. (1989) Retannage with Aluminium Alkoxides-a stabilising Treatment for Acid Deteriorated Leather. The Leather Conservation Centre. Conference Proceeding, International Leather-and Parchmentsymposium International Committee of Museum (ICOM) Arbeitsgruppe, Leathercraft and Related Objects, 8 (12): 1989. Deutsches Ledermuseum, Frankfurt.
  7. European Commission (1994) STEP Leather Project, Evaluation of the Correlation between Natural and Artificial Ageing of Vegetable-Tanned Leather and Determination of Parameters for Standardization of an Artificial Ageing Method. R. Larsen (editor), Protection and Conservation of European Culture Heritage. Research report no. 1.
  8. Lama, A. Antunes, A. P. M. Covington, A.D. Fletcher, Y. and Guthrie-Strachan, J.: A New Solution for the Treatment for Acid-Deteriorated Leather. Article submitted for publication.

  9. Parker, J. (2003) Re-evaluation of the condition of a previously conserved Mexican saddle and anquera. (Am.913), FR2003/22, Department of Conservation and Scientific Research, British Museum (unpublished),
  10. Haridas, M. M. & Bellare, J. R. (1999) Gellability zone for Aluminium Alkoxides. Ceramics International, 25 (7): 613-616.
  11. Arslan, O. Arpac, E & Sayılkan, H. (2010) Siliconcarbide Embedded Hybrid Nanocomposites as Abrasion Resistant Coating. Journal of Inorganic and Organometallic Polymers and Materials. 20 (2): 284-292.
  12. Lichtenberger, R. Puchberger, M. Baumann, S. O. & Schubert, U. (2009) Modification of Aluminum Alkoxides with β-Ketoesters: New Insights into Formation, Structure and Stability. Journal of Sol-Gel Science Technology, 50:130–140.
  13. Covington, A. D. (2009) Tanning Chemistry, The Science of Leather, Cambridge, RSC Publishing.

6 Replies to “New Treatment for Red Rot”

  1. Oh, Christ, we’re back to this crap again. Whatever benefits this may have for museum objects which will never suffer trauma beyond passive exhibition, it is useless to us because bindings must remain in service. By the time red-rot shows on a binding, the fiber length of the leather has already been shortened to the point where it will never again be able to flex without breaking.

    A slightly different problem: this is one more damn study based on an invalid accelerated aging test. Red rot is the result of both the effects of air pollution and internal vice, but the methodology described can at most accelerate the effects of pollution. It therefore cannot replicate real age to any reliable degree. In order to judge the results of accelerated aging it would be necessary to do comparative studies of the acceleration method with real age over the time period anticipated for service— in the case of bookbindings, over one to two centuries minimum. Thirty years ago when I was an MS student at Berkeley I reviewed all the available comparisons of “accelerated aging” with real age, for paper and leather. There were only five (if I remember correctly) that went for more than five years of real age, and none of the comparisons of gas-chamber acceleration for leather reached even twenty years. The main conclusion I came to was that all methods of acceleration looked valid when reported on by the original scientist after less than twenty years, and that the few that went past thirty years all looked like limited failures— not completely useless, but far from adequate as a basis for decisions. And because scientists looked for hurry-up results with accelerated aging, they didn’t bite the bullet and commit resources for genuinely long-term, multi-generation, natural-aging tests. The most reliable information we have on the aging of paper is still the big rigorous studies that were done with natural aging in Germany in the decades before the First World War, and those have mostly been ignored since the 1920s. Although I stopped following this field in the late ’80s, I have gathered that some excellent scientific work has been done on leather deterioration since then; but now we are right back to accelerated aging and results that will give no help to books even if they are valid. And if this new accelerated aging has ever been compared with real age, it still can’t have been compared over a period of more than twenty-five years or so; I have books I bound with Harmatan and Oasis longer ago than that, and books I bound in garment sheepskin as a self-taught amateur in the early 1960s.

    I feel old. I feel tired.

    At least this time around we aren’t faced with anything as stupid as Betty Haines’ 1984 recommendation that deteriorated books be “preserved” by applying the protective salts in an aqueous solution in a concentration and quantity that translated into flooding powdery leather covers with a layer of water a millimeter deep. The binders at the British Library had to try that one on real books before it was accepted that it wasn’t a good idea.

    Jeff, if you don’t want to post this comment, or if you would like me to tone down some of my language, that’s fine. I suppose it really shouldn’t go any further than you. But I had to drain out the bile. I’m so damn tired of short-term thinking and lack of common sense.

  2. Thank you Tom Conry for saying what you think.
    While I do not agree with all you say, you do still make some valid points.
    I hope some useful debate can result from your comments.
    Karen Vidler

  3. There is an article in “Skin Deep, No. 33, Spring 2012” by Karen Vidler about leather conservation, conservation education and other important issues. “The downplaying of interventive skills is creating a generation of unskilled practising conservators who apply to work in public institutions and private practice with limited technical knowledge and hand skills required to undertake high quality interventive work when required.”
    http://www.hewit.com/skin_deep/?volume=33&article=3#article

  4. I think Conroy has treated your work unfairly, because you’ve substantiated the findings in the earlier work that is titled “Influence of pH on Deterioration of Vegetable-tanned Leather by Sulphuric Acid”, Bowker & Wallace. Bur. Stds, Bur. Res, 13 Feb 1933; wherein that treatise found after extensive lab testing that all the veg tanned leathers tested maintained 100% strength at pH 3 and HIGHER; which then fell steeply BELOW pH 3. So by the cure, one positively identifies the cause; and that is, when the tanned leather left the tannery the pH was near or below 3.0, and as time passed the pH fell below 3.0 (quite exactly) and red rot set in. Prior to your research all the blame has been laid, in other works, on the use of hemlock bark for the tannin, and on the use of sulphuric acid in the tanning. Good work!

  5. Hi, Red,

    I am justly chided for discourtesy, and in my defense on that charge I can only repeat my words from my original posting: “I feel old. I feel tired.” I have been watching the topic of leather deterioration bob up and down for forty years now, with repeated announcements that the problem was cured, followed by silence when the cure didn’t pan out.

    However, on the substance of your reply: I must draw on my memories of forty years ago, when I was a masters’ student in the Forrest Products Lab at the University of California at Berkeley (fair disclosure: I did not complete my degree) and made a particular study (under instruction) of methods of accelerated aging and methods of testing leather and paper for permanence. The Bowker and Wallace paper you cite would have been based on one of several methods of gas-chamber accelerated aging, where an attempt was made to replicate the effects of age by intensifying what was believed to be the key factor in deterioration. In the case of the gas chambers, the leather was exposed to corrosive gases at elevated temperatures and concentrations. The assumption (perhaps justified, but still today just an assumption) was that air pollution was a deterioration factor whose importance overwhelmed all others. The gas-chamber acceleration methods were compared with prolonged natural aging to test their validity. When the time of comparison was just four or five years, they seemed to work; but they did not work reliably for even a period of fifteen or twenty years. They had inadequate regulation on both the variables they were studying and the casual ambient conditions, and they embodied untested and doubtful assumptions. Over time they were abandoned. I’m sorry not to be more specific in my comments, but this topic has been out of the front of my mind for well over thirty years.

    I highly approve of your use of old research, which is often of the greatest value. But it can’t be simply offered as an answer in itself, without an examination of its methods, context, and later evaluation.

    Since we are talking about fairness and courtesy, I would point out that my discourtesy was not to Jeff, who was simply and laudably reporting the results of the study; it was to Yvette Fletcher, the lead author of the paper transmitted by Jeff, and to her colleagues A. Lama, A.P.M. Antunes, and J Guthrie-Strachan,

    I would offer a word of appreciation to Karen Vidler for her wise and friendly comments, which I find admirable. I also often disagree with Tom Conroy. I am only sorry that my knowledge, and my brain, are too old and rusty to participate in useful debate, as opposed to offering my grumpy mutterings from a dark corner of the room. To which corner I will now withdraw, muttering.

    Tom Conroy
    Berkeley, CA
